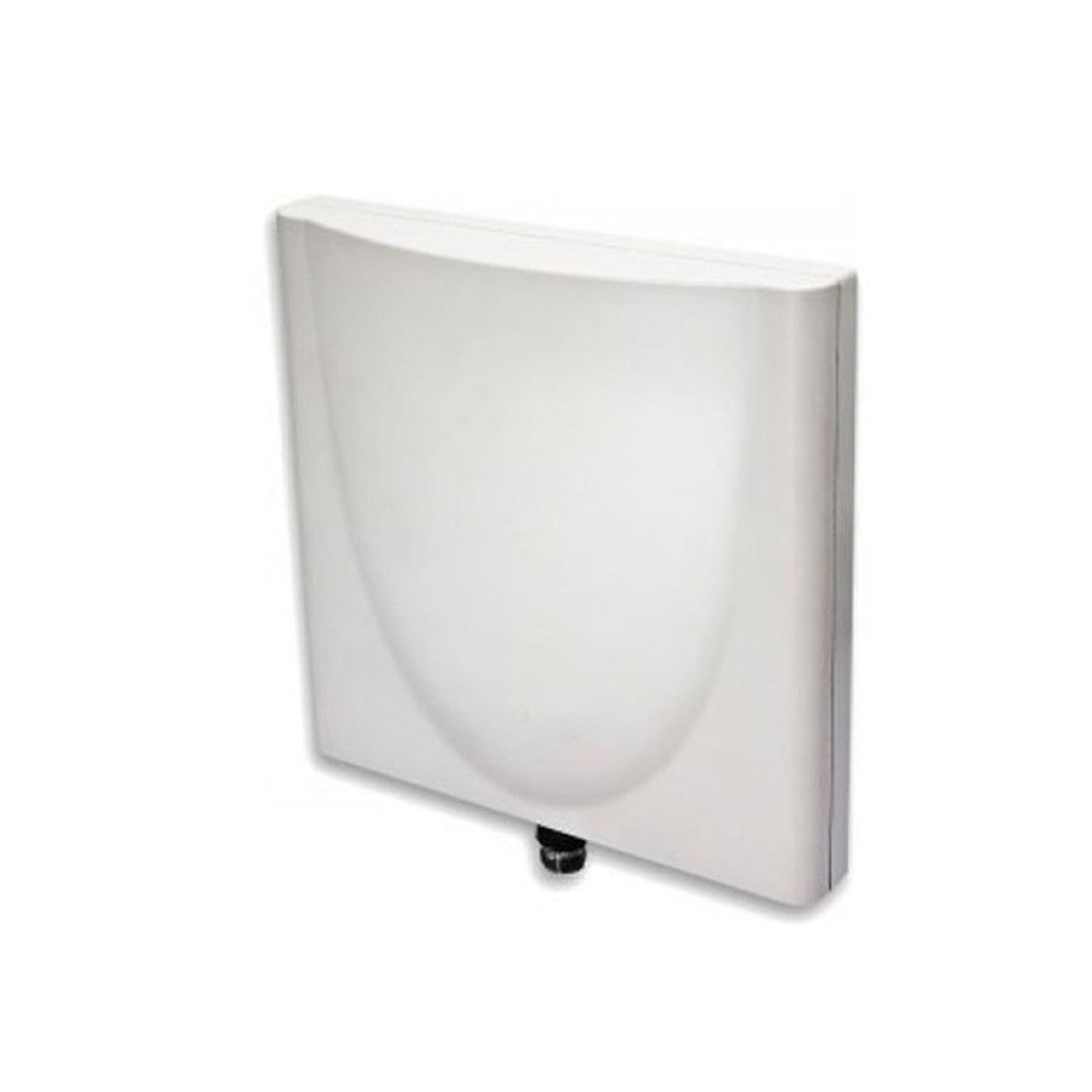

Vivotek SAA04 Panel Antenna _ 5Km

Description

• Frequency range 4900MHz – 5875MHz
• Gain 17~18 dBi
• Frequency range 4900 MHz – 5875 MHz
• Gain 17~18 dBi
• VSWR 2.0: 1 Max.
• Polarization Linear, Vertical
• HPBW / horizontal 17.5~23
• HPBW / vertical 16~19
• Sidelobe level Co-pol. -11.5 dB (max.), Cross-pol. -18 dB (max.)
• Front-to-back ratio -21 dB (max.)
• Isolation N/A
• Power handling 5 W (cw)
• Impedance 50 Ohms
• Cable N/A
• Connector N female
• Lightning protection DC ground
• Survival wind speed 216 km/hr
• Temperature – 40°C to +80°C
• Humidity 95% @ 55ﾟC
• Radome color Gray-white
• Radome material ABS, UV Resistant
• Weight 825 g
• Dimensions 200 x 218 x 50 mm
• Waterproof IP-X5
