Description

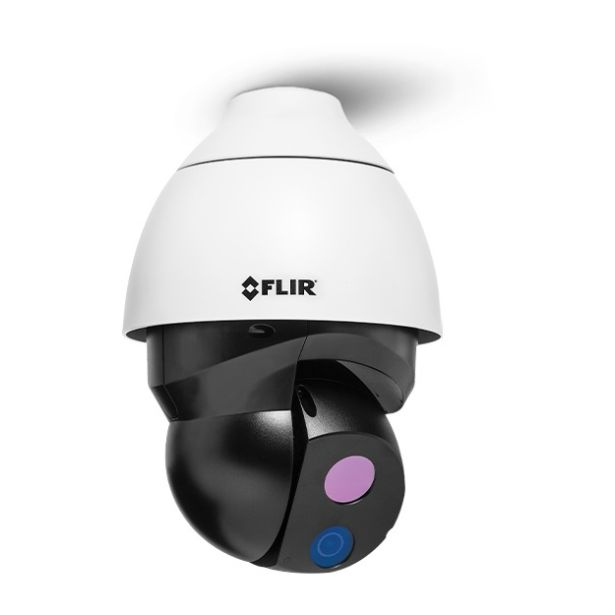

The FLIR Saros DM-Series introduces eight new VGA and QVGA resolution options to FLIR’s multi-sensor security lineup. Capable of capturing video in complete darkness, bright sunlight, and through smoke, dust, or light fog, the DM-Series provides superior perimeter protection in the toughest lighting and environmental conditions. A built-in 4K visible light camera operates alongside the thermal sensor to capture minute details in low light conditions. The DM-Series also integrates with the FLIR United Video Management System (UVMS), as well as other ONVIF-compliant video management systems. This gives users complete control over the all new dual-sensor viewing mode, alarm functions, and fully programmable preset tour.
General
-
Detector Type
-
Long-Life, Uncooled VOx Microbolometer
-
Focus Range
-
Athermalized, Focus-Free
-
Input Voltage
-
24 VAC, Universal PoE Injector
-
Power Consumption
-
12VDC, 2.5A, 30W 24VAC, 2.36A, 57VA 55VDC (PoE), 0.62A, 34W
Environmental
- Humidity
- 10 – 90% relative
- IP Rating (dust & water ingress)
- IP66
- Operating Temperature Range
- -40°C – 55°C cold start
- Shock
- IEC 60068-2-27
- Storage Temperature
- -40°C – 85°C
- Vibe
- IEC 60068-2-64
Imaging & Optical
- Visible Camera
- 110° HFOV 2.8mm focal length F/# 1.6
Measurement & Analysis
-
Programmable Presets
-
256
Other
- Type of Sensor
- Full HD 4K 1/1.8″ Exmor R CMOS
PTZ
- Pan Angle
- Continuous 360°
- Tilt Angle
- -10° – 190°
System Integration
- Ethernet
- Yes
- Network APIs
- FLIR SDK, FLIR CGI, ONVIF Profile S
- Streaming Resolution
- Thermal: QVGA to VGA Visible: VGA to 4K
- Supported Protocols
- IPV4, HTTP, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP
Thermal Camera
-
Optical Characteristics
-
FOV (H x W): 50° x 38° Focal Length: 4.3 mm
-
Pixel Pitch
-
12 µm
-
Thermal Frame Rate
-
NTSC: 30 Hz PAL: 25 Hz / 8.3 Hz
-
Thermal Image Settings
-
Auto AGC, Dynamic Detail Enhancement (DDE), Brightness, Sharpness, Contrast.
Video & Recording
- Video Compression
- Thermal: One channel of H.264 & M-JPEG Visible: Two independent channels of H.264 & M-JPEG
- Video Thermal AGC Region of Interest [ROI]
- Default, Presets and User definable to insure optimal image quality on subjects of interest
Visible Camera
- Array format
- 320 × 256
- Sensitivity
- Color: 0.25 Lux @(f1.6 AGC On, 30FPS) B/W: 0.10 Lux @ (f1.6 AGC On, 30FPS)
- Spectral Range
- 7.5 µm to 13.5 µm
