Geovision GV-EV48 Elevator Controller

• Grant access to specific elevator floors using access cards, card’s PIN code or fingerprint
• GV-EV48 – 24 Floors: Built-in 24 relay outputs to support up to 24 elevator floors
• GV-EV48 – 48 Floors: Built-in 48 relay outputs to support up to 48 elevator floors
• Support up to 2 GV-Readers / GV-GF Fingerprint Readers through network connection and RS-485 connection

Description

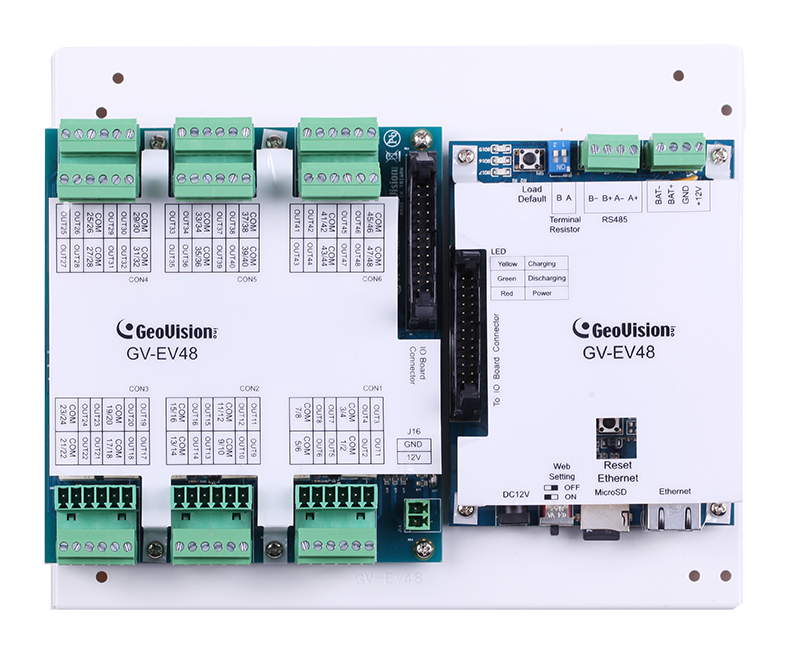

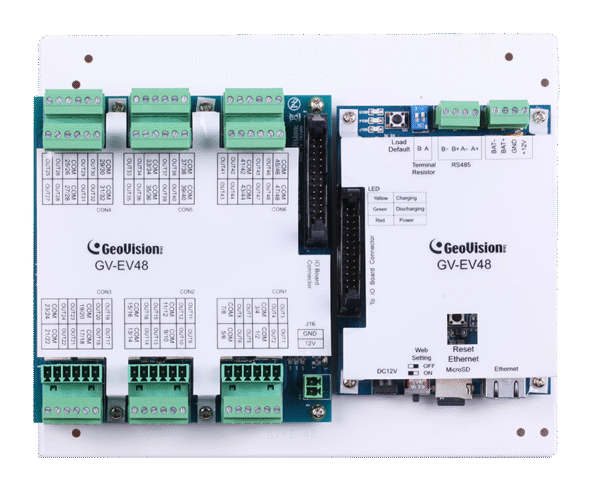

GV-EV48 is an elevator controller designed to control access of 1 elevator with a maximum of 48 floors. Up to 2 GeoVision readers can be connected to the GV-EV48 through RS-485 and/or network connections. GV-EV48 can recognize identification cards and grant access to the authorized floors regulated by GV-ASManager access control management system.
