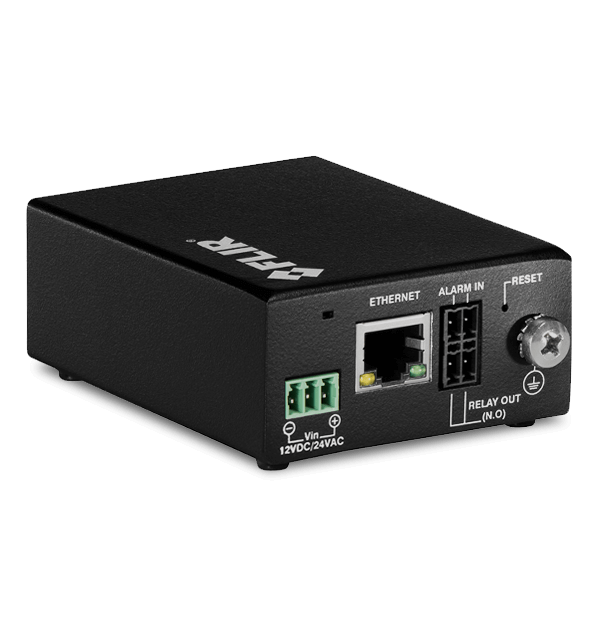

FLIR IOI-TRK-101-P H.264 VA Encoder for Intrusion FOR PTZ

SKU FLIR:IOI-TRK-101-P Category Tag Brand:

Description

The TRK-101 analyzes video signals and sends alarm notifications when people, vehicles and objects cross perimeter lines, enter pre-defined regions, or are left behind or removed from a scene. Users can define perimeters and customize what to detect. The TRK-101 has both analog and IP streaming video outputs that enable hybrid connectivity to both legacy and IP-based CCTV networks. The encoder also integrates with existing fixed analog cameras for retrofit of existing installations.

General

Dimensions (inches)

2.7 x 1.42 x 4.61″ (W x H x D)

Dimensions (mm)

68.5 x 36 x 118mm (W x H x D)

H.264 Frame Rate (PAL/NTSC)

D1 12/15 FPS VGA 18 FPS 2CIF 25/30 FPS CIF 25/30 FPS

Number of Intelligent Video Analysis Channels

1

Operating System

Windows 7, 8 and 8.1, 10

Storage on the Edge

3,800Mb event recording

Voltage

12VDC (+/-10%), 24VAC



Compliance & Certifications
Safety
UL, CE





Environmental
Electromagnetic Interference
(EMC) FCC 47 CFR Part 15, Subpart B, Class A; CE Class A
Environmental
RoHS





System Integration
Alarms/Commands
TCP/IP, HTTP
Browsers
Microsoft Edge in IE mode (Microsoft will support IE mode in Edge at least until 2029)
Ethernet (IEEE 8023-8023u)
1 x RJ45 interface
IN – Alarm Input
1x dry contact
OUT/Relay Output
1x relay output (rated load 0.3A@12VDC; 1A@30VDC; 0.25A@24VAC, 50/60Hz)
Physical Connector
1x BNC 75Ω
Services and Protocols
TCP/IP, UDP/IP, HTTP, SMTP, DHCP, DNS, SNTP
TV Standard
Composite 1Vp-p – NTSC or PAL





Video & Recording
Bit Rate
CBR (128Kbps – 4Mbps), VBR
IP Video Streaming
H.264, MPEG-4 SP, MJPEG
Video Streaming
RTP/RTSP
